Description
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
- Toolless button-mount installation; cord retention brackets included

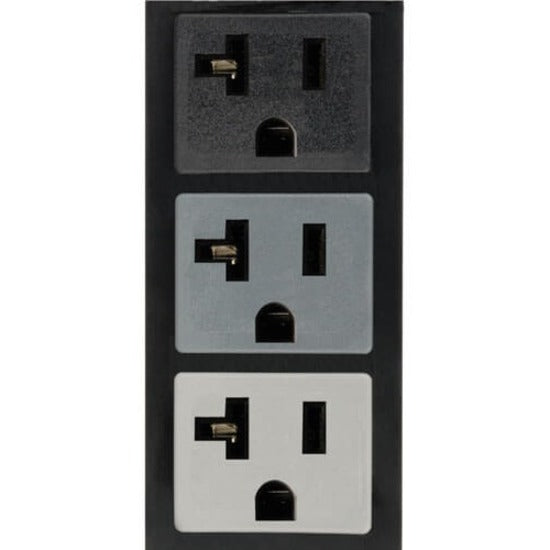

- 27 outlets total; 21 5-15/20R (120V), 6 L6-20R (208V)

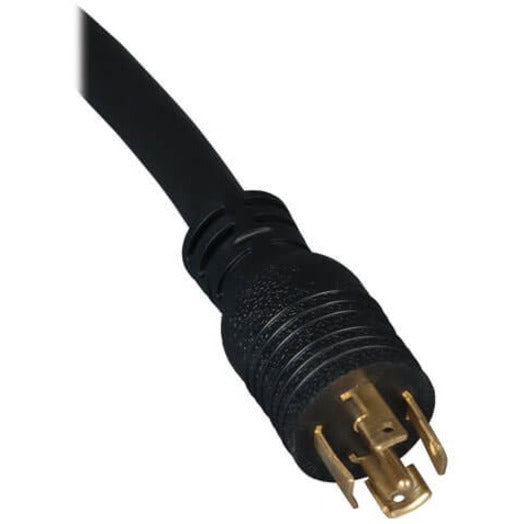

- NEMA L21-20P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord

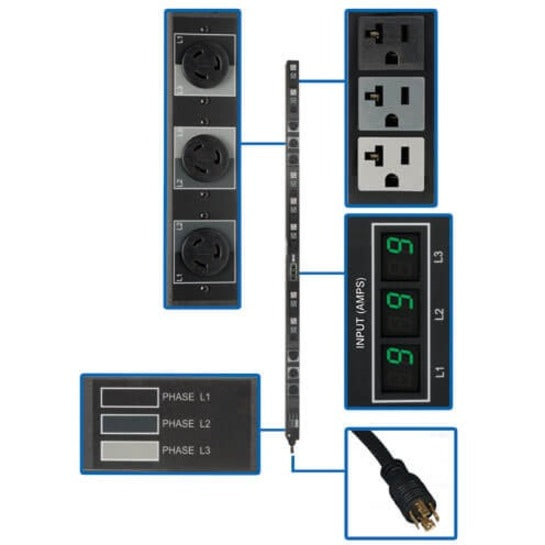

- Reports input current per-phase via built in current meters

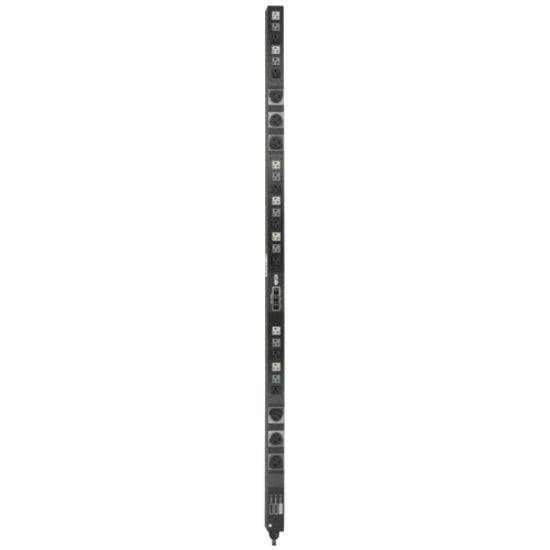

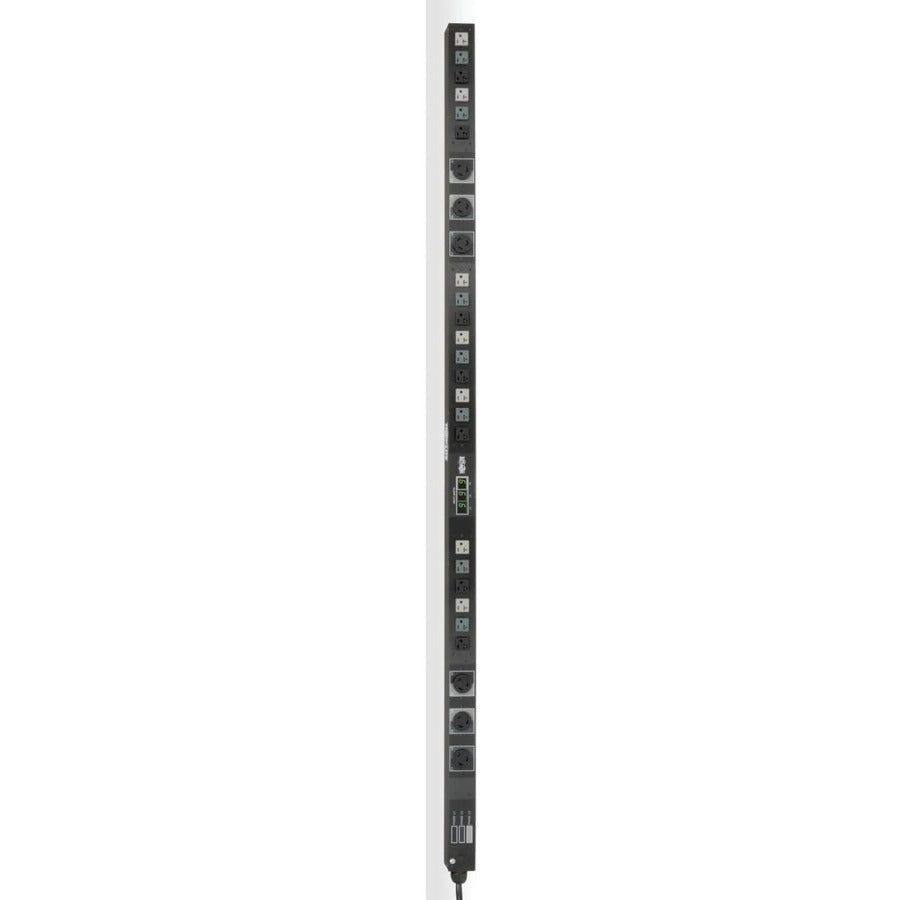

- Metered 5.7kW 3 Phase 208/120V PDU; 70 in. / 178cm 0U vertical rackmount
Extra Information
Brand:
Tripp Lite by Eaton
Receptacle Type:
NEMA L6-20R,NEMA 5-15/20R
Receptacle Detail:
6 x NEMA L6-20R,21 x NEMA 5-15/20R
Environmental Certification:
RoHS
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Power Rating (Watt):
5.70 kW
Input Voltage:
230 V AC
Product Series:
Metered
Limited Warranty:
2 Year

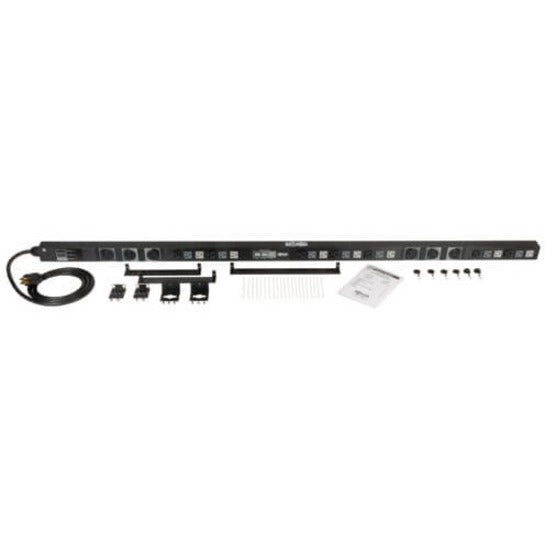

Package Contents:
3-Phase Metered PDUCord Retention BracketsRack Mounting BracketsUser Manual
Plug/Connector Type:
NEMA L21-20P
Product Type:
PDU
Mount Type:
Rack-mountable
Manufacturer:
Tripp Lite by Eaton
Product Model:
PDU3MV6L2120B
Output Voltage:
120 V AC,208 V AC
Mounting Orientation:
Vertical
Country of Origin:
Taiwan
Manufacturer Website Address:
https://tripplite.eaton.com/
Warranty Information
Manufacturer Warranty
